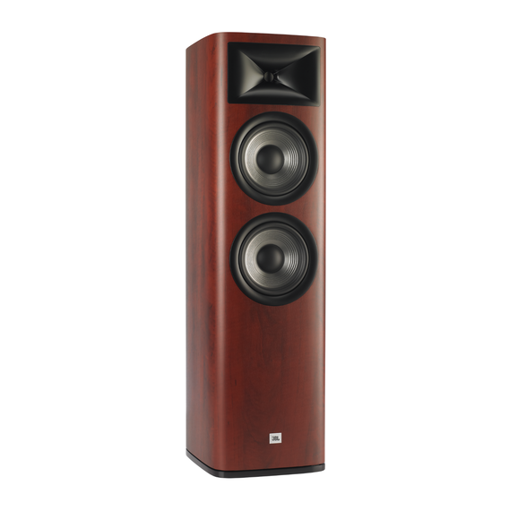

The JBL Studio 690 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.

GENERAL FEATURES

No features have been added yet. Add features in the product metafields using "Product Features".

What’s in the box:

  • 1 x JBL Studio 690 Floor Standing Loudspeaker
  • 1 x Owner’s Manual
  • 1 x Warranty Card
  • 1 x Safety Sheet
  • 4 x Floor Spikes
  • 4 x Rubber Feet

Technical Specifications:

  • Dual 8", 2.5-way compression driver
  • floor standing loudspeaker
  • Dual 8" (203mm) PolyPlas
  • Low-Frequency Woofer
  • High-Definition Imaging (HDI) Waveguide with 1" (25mm) High Frequency Compression Driver
  • Recommended Amplifier Power: Max 250W
  • Frequency Response: 36Hz – 40kHz
  • Sensitivity: 90dB @ 1M, 2.83V
  • Nominal Impedance: 6 Ohms
  • Crossover Frequencies: 600 Hz, 1.7 kHz
  • Enclosure Type: Bass-Reflex via Rear-Firing Tuned Port
  • Dimensions (W x D x H): 300 x 350 x 1058mm
  • Weight: 29.38 kg
