. Features
-

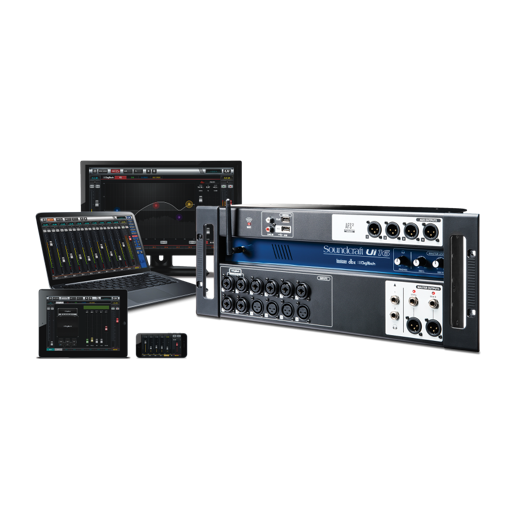

Tablet/PC/Smartphone Controlled Digital Mixer
-
Integrated Wi-Fi
-
Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
-
Use up to 10 control devices (tablets, phones, PCs) simultaneously
-
Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
-
Fully recallable and remote-controlled mic preamps
-
4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
-
31-band Graphic EQ, Noise Gate and Compressor on all outputs
-
Real-Time Frequency Analyser (RTA) on inputs and outputs
-
3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
-
Subgroups, Mute Groups, View Groups, and more mixer controls
-
Show/Snapshot recall with channel safes and security lockout
-
2-channel USB audio playback and recording
-
Password-protected Access limitation system
-
Sync ID (multiple browser windows staying in channel Sync)
Technical Specifications
-

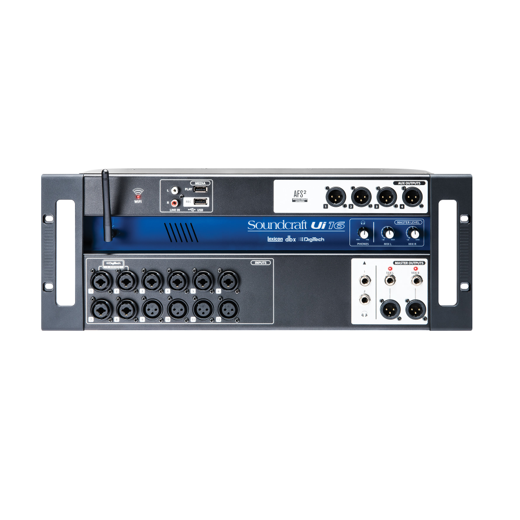

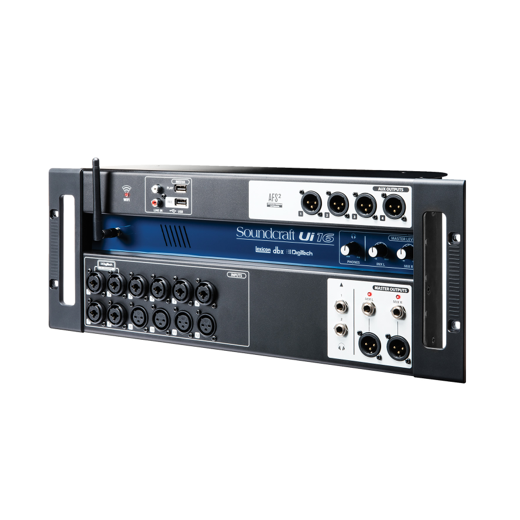

Product Type: Remote-Controlled 24-Input Digital Mixer
-
Wi-Fi Router Onboard: ✓
-
Ethernet Control: ✓
-
Inputs: 6 ¼” TRS/XLR combo, 6 XLR, 2 RCA, 2-channel USB
-
Hi-Z/Instrument Channels: 2
-
Main Outputs: XLR and ¼"
-
Aux / Monitor Sends: 6 balanced XLR
-

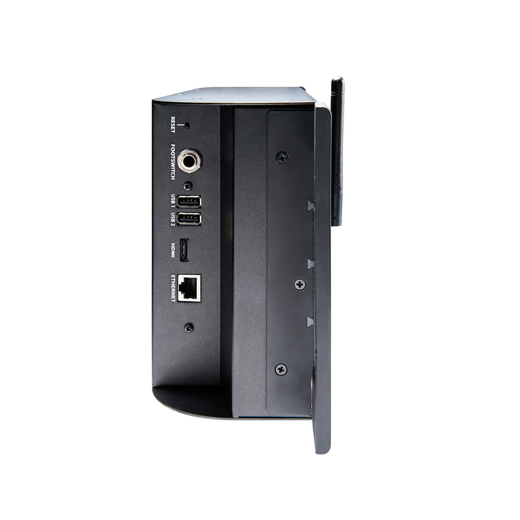

HDMI Output: ✓
-
Dimensions (W x H x D): 7" x 4.3" x 19" (559mm x 610mm x 254mm)
-
Weight: 7.9 lbs (3kg)
