JBL Control 25-1

Name: JBL Control 25-1
Brand: JBL Store PH
SKU: CONTROL 25-1
Price: 31858.0 PHP
Availability: InStock

₱31,858.00 ₱35,398.00

| /

Or 3 months for only ₱1,000 with

. Learn More.

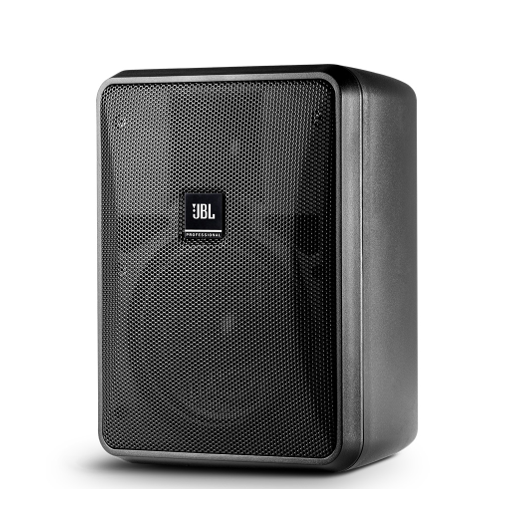

Compact Indoor/Outdoor Background/Foreground Speaker

The Control® 25-1 is a two-way 5” speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 25-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

GENERAL FEATURES

5-¼” woofer with woven fiberglass cone
3/4” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance
Built-in InvisiBall® mounting hardware*, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
100 Watt power handling (200 Watt program) in direct 8Ω setting, plus built-in 30 Watt 70V/100V multi-tap transformer
High fidelity sound character with broad frequency response of 60 Hz – 20 kHz

What’s in the box:

Control 25-1 Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker
Installation Manual
InvisiBall Wall-mounting System
6 mm x 100 mm Hex Key

Technical Specifications

Frequency Range (-10 dB)1 60 Hz – 20 kHz
Frequency Response (+/-3 dB) 85 Hz – 17 kHz
Power Rating2 200 W Continuous Program (2 hrs)
100 W (400W peak) Continuous Pink Noise (2 hrs)
75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL3 110 dB average Continuous Pink Noise (116 dB peak)
Sensitivity4 90 dB, 1W/1m (averaged 100 Hz – 10 kHz)
Coverage Angle5 100° x 100°
Directivity Factor (Q) 6.04 (averaged 1 kHz – 16 kHz)
Directivity Index (DI) 7.6 dB (averaged 1 kHz – 16 kHz)
Nominal Impedance 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 3rd order high-pass Circuitry

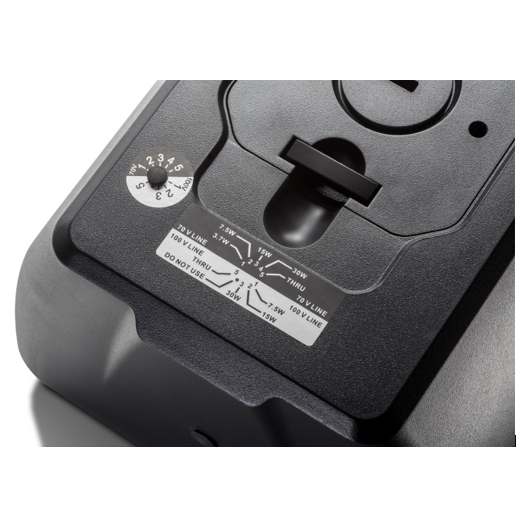

Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W
Insertion Loss <0.94 dB at any tap setting
Thru Setting: 8Ω nominal
Recommended Protective
High-Pass6
60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V tap settings)
Transducers
Low Frequency 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
High Frequency 19 mm (0.75 in) PEI diaphragm, low-viscosity ferromagnetic fluid, and lightweight Kapton™ voice coil former.
Physical Enclosure Material High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powder coating. MTC-25WMG-1 (&-WH) available with Weather-Max™ multi-layer foam and tight-weave mesh vapor barrier backing.
Installation InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary
